EAGLES Need help?

Portable badminton system

Set up your EAGLES system.

Watch the complete 56-second guide, then use the six illustrated steps whenever you need more detail.

Complete setup video

56 seconds Step 5 close-up included English captions No app required
Read the video transcript
  1. Lay every component out where you can see it.
  2. Clip the yellow center brackets onto the square base rail and add the two short crossbars.
  3. Fit a yellow end hub onto each end of the base rail.
  4. Extend and install both telescoping side-post assemblies.
  5. Before adding the feet, open each folding support fully and hand-tighten the white wing knob.
  6. Seat two capped feet fully in each end hub and spread each pair into a wide V.
  7. Raise the net and check the finished frame.
Video won’t play?

Follow the written steps below or save the video to watch it offline.

Before you begin

Choose level ground Give the full frame room to open.
Lay out every part Keep the packaging until setup is complete.
Adult assembly Keep fingers clear of connector openings.

Six simple steps

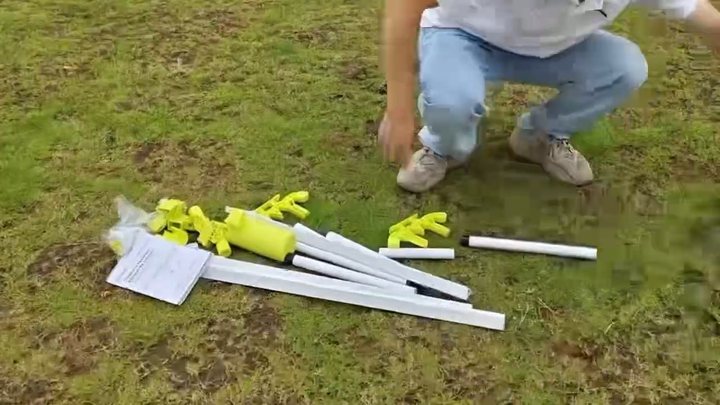

  1. Square base rail, yellow connectors, round tubes, net assemblies, and accessories laid out on grass

    Lay out all parts

    • 1 base rail
    • 2 center brackets
    • 2 crossbars
    • 2 end hubs
    • 2 post and net assemblies
    • 4 capped feet
    Watch 0:02

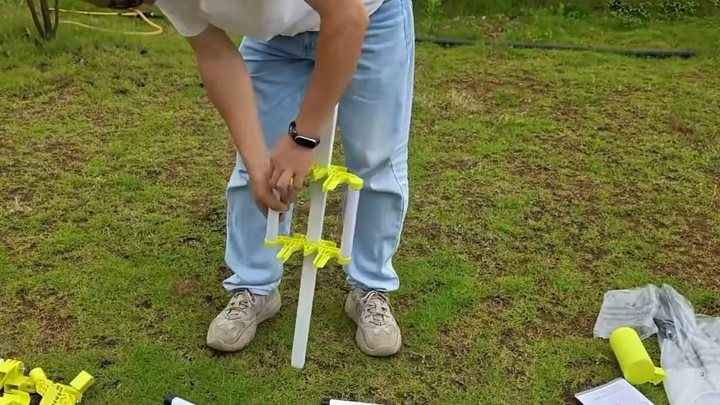

  2. Two yellow center brackets and short round crossbars being installed on the square base rail

    Build the center holder

    Clip both center brackets onto the rail in the same direction, then push both short crossbars into place.

    Watch 0:08

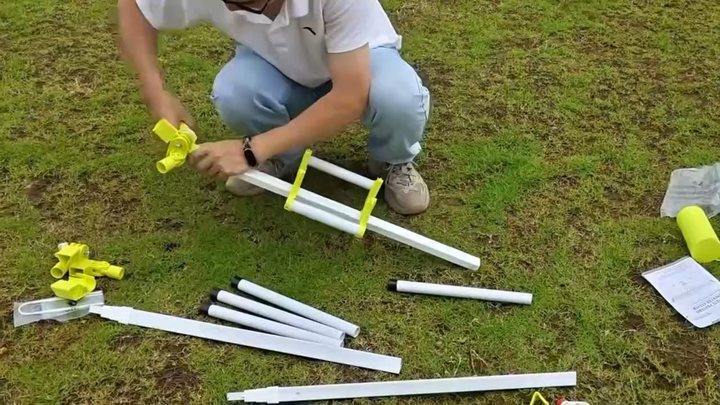

  3. A yellow end hub being pushed onto the end of the square base rail

    Attach the end hubs

    Press one hub onto each end of the rail. The round sockets for the feet should face outward.

    Watch 0:20

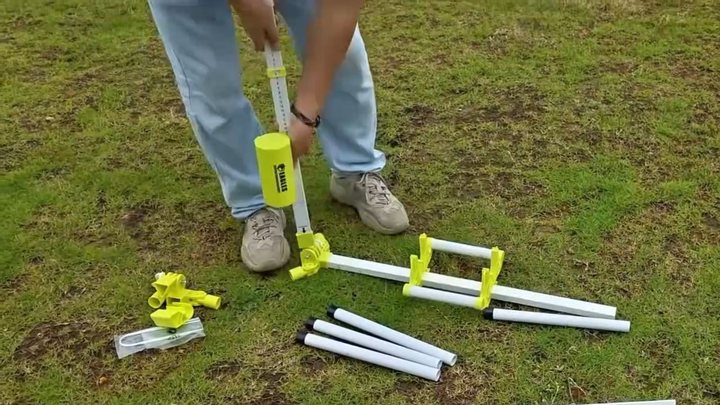

  4. A telescoping square side-post assembly being installed into a yellow end hub

    Install the side posts

    Extend and seat both post assemblies fully, keeping the net straight and untwisted.

    Watch 0:26

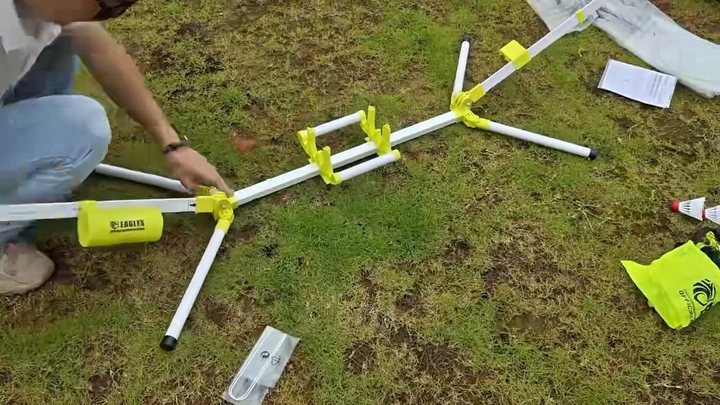

  5. A long capped round foot being inserted into a yellow end hub

    Open the supports and add the four feet

    Before adding the feet, open each folding side support completely at the yellow hinge and hand-tighten the white wing knob. Insert two capped feet into each end hub, then spread each pair into a wide V.

    If it will not open or stay firm: Loosen the knob slightly before opening, then hand-tighten it after the support is fully open. If the frame still leans, seat every foot fully and spread each pair into an even V. Never force the hinge.

    Watch Step 5 at 0:36 Watch the 18-second close-up

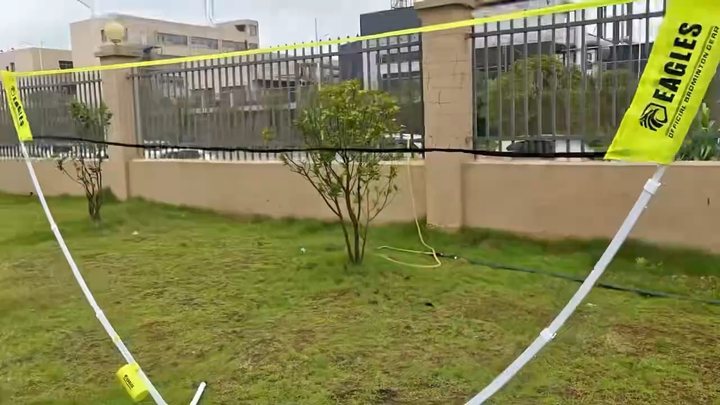

  6. Completed EAGLES badminton net standing on grass

    Raise and check

    Lift and straighten the net. Before play, confirm:

    • Every connection is fully seated
    • All four feet form a stable base
    • The net is straight and untwisted
    • The frame does not wobble
    Watch 0:43

More help & FAQ

Other setup questions.

A connector will not slide into place

Pull the pieces apart, align the rail squarely with the opening, and compare its direction with the step picture. Turn the connector around if needed. Never hammer or force it.

The frame leans or wobbles

Move the system to level ground, spread each pair of feet into a wide V, and press both side posts fully into their end hubs. If a folding support still moves, watch the side-support guide.

The net looks loose or twisted

Lower the net, remove any twist, and confirm both side sleeves face outward. Extend the telescoping posts evenly and make sure both are fully seated.

A part is missing or damaged

Stop the setup and take a clear photo of the parts you received. Email the photo and your order number so the correct part can be identified.

Email EAGLES support
Safety, care and storage

Safe use

  • Adult assembly is required.
  • Do not sit, climb, or lean on the product.
  • Keep fingers clear of openings and the yellow hinges.
  • Check stability before every use.

Pack away

  1. Lower the net and collapse both posts.
  2. Loosen each white wing knob before folding the support arms.
  3. Pull the four feet straight out.
  4. Remove the post assemblies and end hubs.
  5. Remove the crossbars and center brackets.
  6. Dry every part before storing it.

EAGLES support

Still stuck? Send us a photo.

Include your order number and a clear picture of the connection or part. It helps us identify the problem quickly.

Contact EAGLES support support@eagles.taizlog.com
Warranty information

EAGLES® offers a 60-day limited warranty from the purchase date. Replacement parts are provided for defects under normal use; proof of purchase is required.
